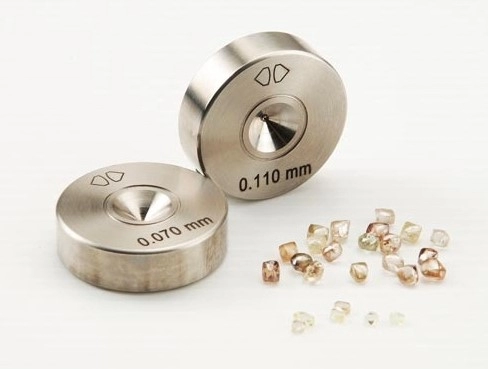

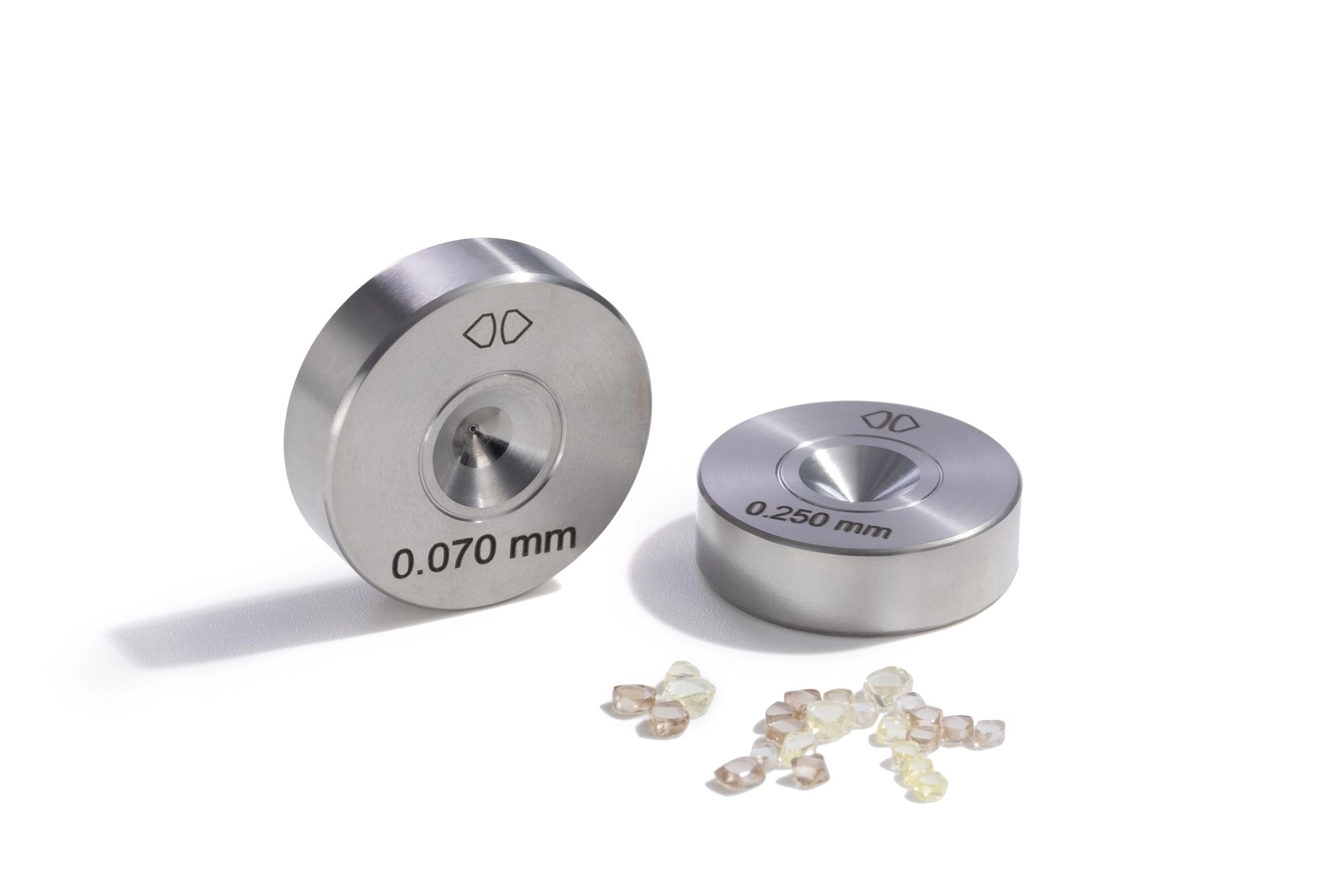

天然ダイヤモンドダイス(NDダイス)

◆ Manufactured from high quality natural diamond
◆ 111 crystal orientation for strong reinforcement
◆ Excellent finish
◆ Excellent wire drawing quality
◆ Available in sizes from 0.015mm to 2.0mm





 Natural diamond wire drawing die standard tolerance and shell table Unit: mm
Eye mold size Standard Tolerance Minimum Tolerance

Standard housing

Diameter x Thickness

<0.040 +0-0.0005 +0-0.0004 Ø25 or 28 x 6
0.040~0.059 +0-0.0008 +0-0.0005 Ø25 or 28 x 8
0.060~0.099 +0-0.001 +0-0.0005 Ø25 or 28 x 8
0.100~0.399 +0-0.0015 +0-0.001 Ø25 or 28 x 8
0.400~0.799 +0-0.002 +0-0.001 Ø25 or 28 x 10
0.800~2.500 +0-0.003 +0-0.002 Ø25 or 28 x 12
